Cylinders

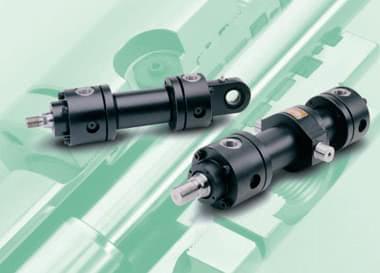

Round cylinder, MMB Series

The cylinders of the MMB series are designed for heavy operation, such as in steel mills., Where, only robust and durable cylinder in question In addition to the standard cylinders featured in this catalogue, we design and manufacture MMB cylinders can be designed according to customer requirements. Our technicians will assist you in the coordination of special designs on your specific application.

Parker's Cylinder Hannifi n Corporation is the world's largest supplier of hydraulic cylinders for industrial applications. The use Parker cylinders diverse as machine tools, flight simulation for tidal barrier control.

Standard Specifications

• Cylinders for heavy loads
• Attachment styles and dimensions to CETOP RP58H, ISO 6020/1
• Nominal pressure 160 bar
• Duration Fixed operating at operating pressure
• Hydraulic mineral oil base - other media on request
• Temperature range of standard seals: -20 ° C to + 80 ° C
• Construction: head and cap Flanged
• Bore diameter from 40mm to 320mm
• Rod Diameter: 22mm to 220mm

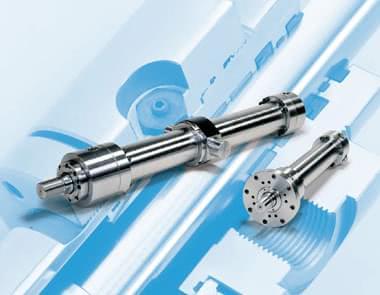

Cylinders, MMA Series

The high-performance MMA cylinders are designed for use in steel mills and in general for arduous applications where a rugged, reliable cylinders are in question. In addition to the standard cylinders featured in this catalog, we design and manufacture MMA cylinders can be designed according to customer requirements. Our technicians will assist you in coordinating special designs on your specific application.

Standard Specifications

• Cylinder, heavy duty
• Attachment styles and dimensions to: CETOP RP73H, ISO 6022 *, DIN 24 333, BS 6331, Part III, AFNOR NF E48-025, VW 39D 921
• Nominal pressure 250 bar
• Duration Fixed operating at operating pressure
• Hydraulic mineral oil base - other media on request
• Temperature range (standard seals) -20 ° C up to + 80 ° C
• Construction: head and cap Flanged
• Bore diameter of 50 to 320 mm
• Piston rod diameter of 32 mm to 220 mm
• Cushioning at both ends (optional)
• Ventilation at both ends (option)
  * Cylinder with bore 140 and 180 mm according to ISO 6022 is not

Tie Rod, Series HMI / HMD

The cylinders of the Series HMI and HMD described in this catalog are compact cylinders according to ISO 6020/2 and DIN 24 554, are designed depending on the rod end and insert-type, for operating pressures up to 210 bar.
They were in the light of the requirements a variety of industries constructed in which cylinders are specified according to the ISO or DIN standard.
In addition to the standard cylinders featured in this catalog, we construct HMI and HMD cylinders can be designed according to customer requirements. Our technicians will advise you on the coordination of special designs for your specific application.

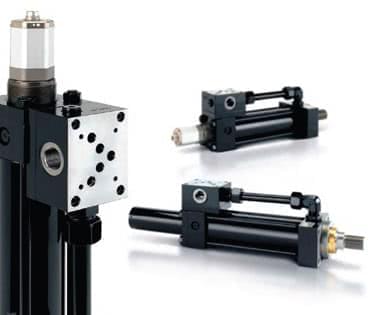

Tie Rod with integrated positioning, series HMIX

The cylinders of the HMIX series are based on Parker's proven metric HMI tie-bar and are suitable for a working pressure up to 210 bar. A typical HMIX model consists of a cylinder with an integrated position measuring system and a manifold block and is intended for the immediate completion with a valve.

A hydraulic cylinder with integrated position measuring system can be upgraded to a fast positioning in conjunction with a valve that responds quickly and accurately to displacement and velocity signals. New movements can be implemented quickly and easily by controlling pretending changed preset values ​​without time-consuming adjustment of mechanical stops. The combination of sophisticated electronics with the enormous power density of hydraulic drive improves the flexibility of the machine and the limited times to a minimum.

Areas of application

Cylinder with integrated displacement encoder suitable for precise
control of movements in applications such as:

• Machine Tools
• Handling systems
• Simulators
• Woodworking machinery
• Paper Machines
• Gross fittings
• Injection molding machines
• Stabilizing systems in the maritime sector
• Plastics processing machinery
• Antennenpositioniersysteme
• Welding equipment
• Power control in wind turbines

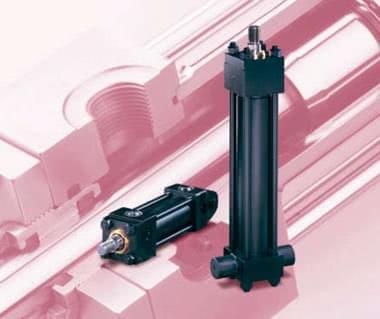

Tie Rod, 2H Series
